Description

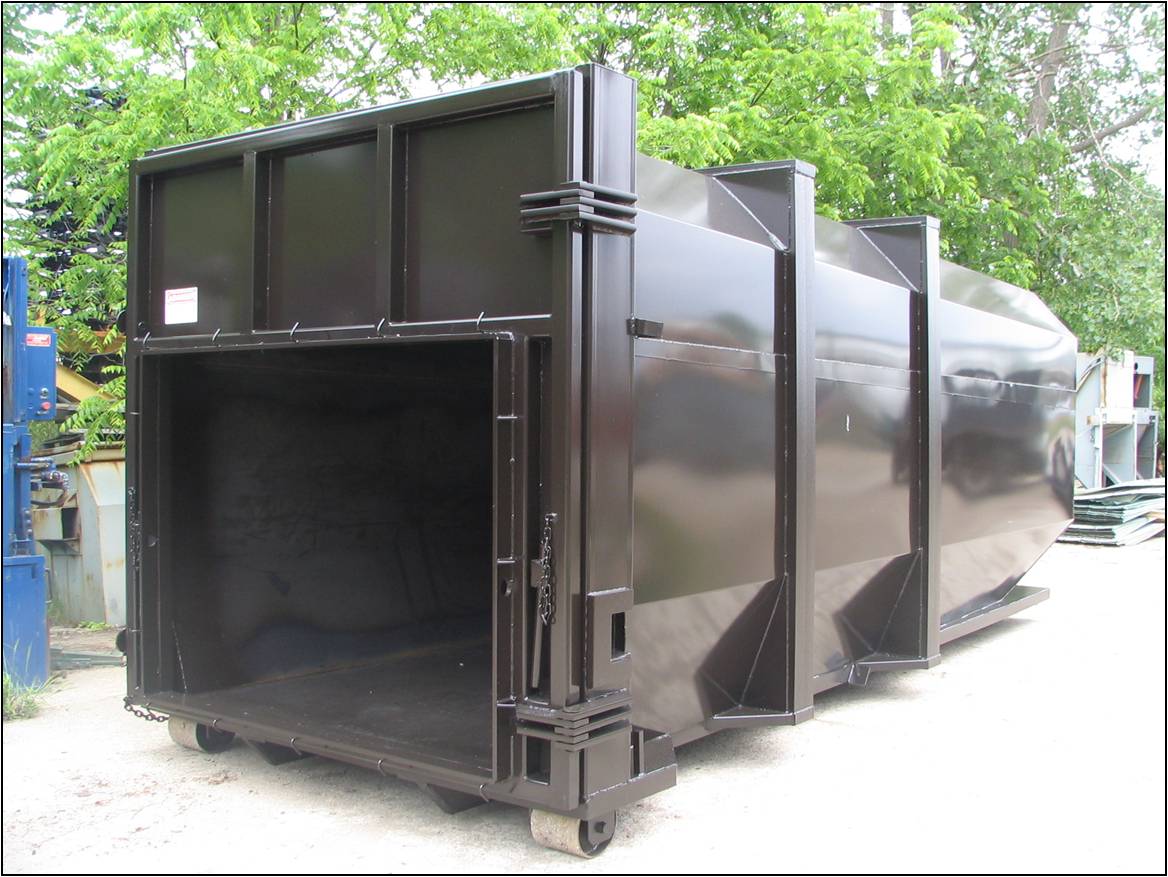

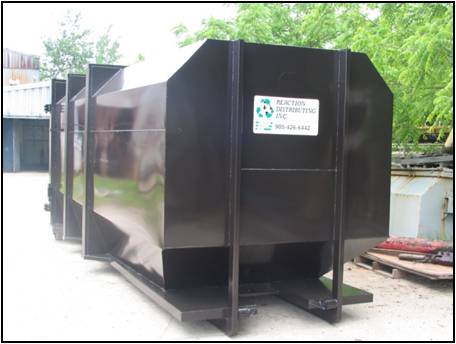

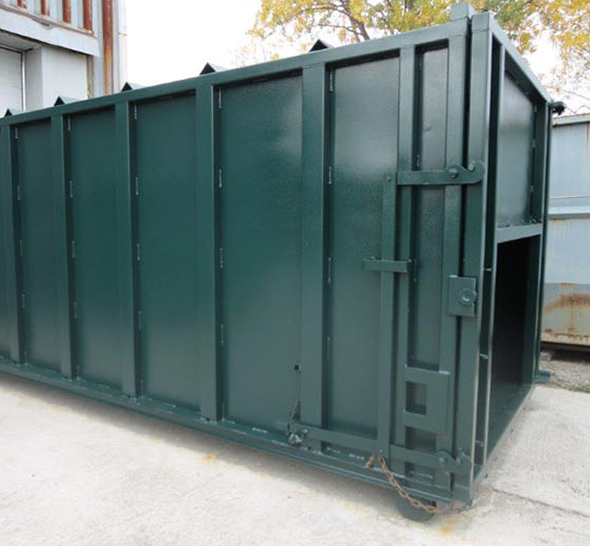

All of the Tri-Pak receiver containers are designed to accommodate specific compaction forces. The standard force ratings categories include: up to 75,000 lbs., up to 150,000 lbs. and up to 200,000 lbs. Each container has been specifically engineered to meet/exceed these thresholds and a Finite Elemental Analysis (FEA) has been completed to ensure compliance. Each model is available in a wide range of capacities from 20 cubic yards to 50 cubic yards with a multiple if different under structures including Heil and Universal.
Technical Details
Dimensions
| Standard Duty | ||||
| Weight | A | B | C | |
|---|---|---|---|---|
| STH-20 | 4,100 lbs | 102″ | 102″ | 126″ |
| STH-30 | 5,500 lbs | 102″ | 102″ | 186″ |
| STH-40 | 6,700 lbs | 102″ | 102″ | 240″ |
| STH-50 | 8,500 lbs | 102″ | 102″ | 306″ |
| Extra Heavy Duty | ||||
| Weight | A | B | C | |
|---|---|---|---|---|
| STH-20XHD | 5,500 lbs | 102″ | 102″ | 126″ |
| STH-30XHD | 7,100 lbs | 102″ | 102″ | 186″ |
| STH-40XHD | 8,200 lbs | 102″ | 102″ | 240″ |
| STH-50XHD | 9,700 lbs | 102″ | 102″ | 306″ |
