Description

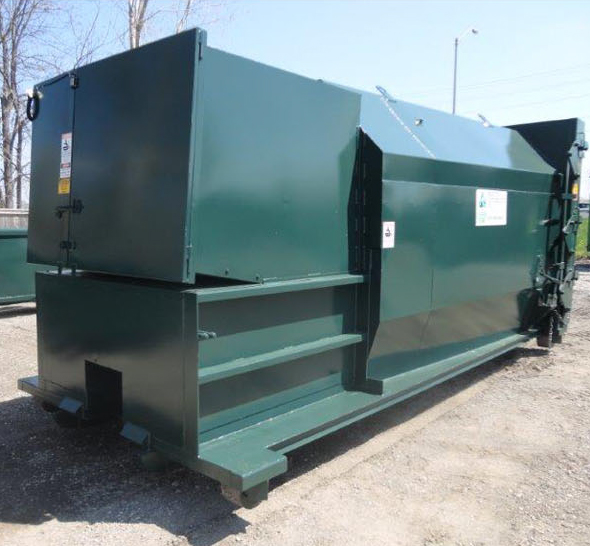

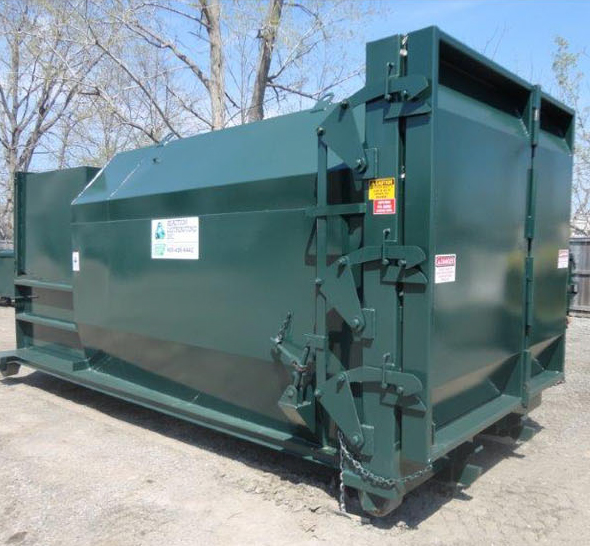

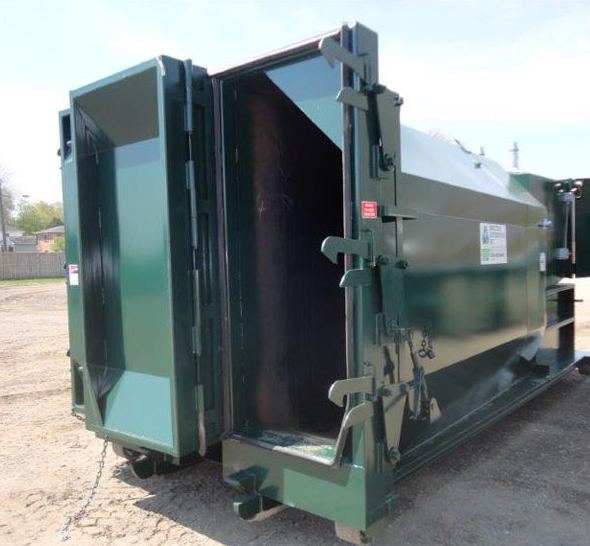

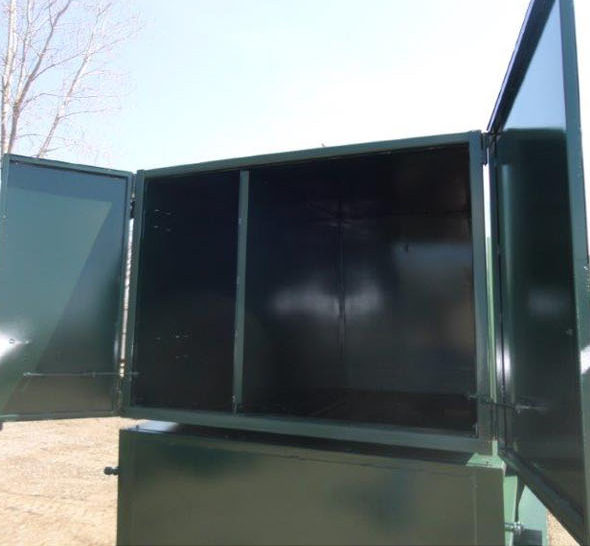

The TV-2000 is a self-contained compactor that is specifically designed to compactor two different waste streams without mixing the components. It is equipped with two separate compartments that enables the operator to place wet waste into one section and dry waste into the other. It is a true self-contained unit and each compactor is manufactured with fully welded seams, contains a 4″ liquid sump area and is equipped with a dump door that contains a full perimeter flexible “T-seal”. This seal prevents any migration of liquids between the container door frame and the door itself. This model is available in a wide range of capacities from 15 to 38 cubic yards and can be customized to fit our clients individual needs.
Technical Details
Standard Features
- UL/CSA Approved Design
- Meets/exceeds ANSI Z245.2 regulations
- Meets/exceeds OSHA regulations
- PLC “flex-design” based control systems
- NEMA 4 rated enclosure
- Internal timers prevent system run-on
- Self-diagnostic indicators
- 24-volt controls
- Adjustable multi-cycle timer
- 75% and 100% full light
- Auto-alert maintenance mode
- Heavy duty oil-tight pushbutton controls
- Key lockable start pushbutton
Mechanical Specifications
| 30-DUAl | 34-DUAl | 38-DUAl | |
|---|---|---|---|
| Charge Chamber Volume | 1.6 | 1.6 | 1.6 |
| Charge Chamber Opening Size | 42″ x 60″ | 42″ x 60″ | 42″ x 60″ |
| Ram Face Size | 27″ x 60″ | 27″ x 60″ | 27″ x 60″ |
| Ram Penetration | 6″ | 6″ | 6″ |
| Compaction Force Normal | 50,240 lbs | 50,240 lbs | 50,240 lbs |
| Compaction Force Maximum | 55,264 lbs | 55,264 lbs | 55,264 lbs |
| Cycle Time | 47 seconds | 47 seconds | 47 seconds |
| System Pressure Normal | 2000 psi | 2000 psi | 2000 psi |
| System Pressure Maximum | 2200 psi | 2200 psi | 2200 psi |
| Pump Capacity | 10 gpm | 10 gpm | 10 gpm |
| Motor Size | 10 hp | 10 hp | 10 hp |
| Cylinder Size | 2 x 4″0 | 2 x 4″0 | 2 x 4″0 |
| Cylinder Type | Double Acting | Double Acting | Double Acting |
| Ram Face Pressure Normal | 30.5 psi | 30.5 psi | 30.5 psi |
| Ram Face Pressure Maximum | 33.5 psi | 33.5 psi | 33.5 psi |
| Oil Tank Capacity | 30 gal | 30 gal | 30 gal |
| Shipping Weight (Head only) | 12,500 lbs | 12,800 lbs | 13,400 lbs |
Electrical Specifications
| Control System | 110 volt 60 cycle powered by step-down transformer |
| Control Panel | Fully wired. Keyed start button, emergency stop, full lights, reset button, PLC, dual current sensors |
| Power | 208/230/575 Volt, 3 Phase 60 Cycle |
Dimensions

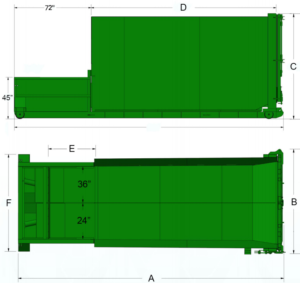

| A | B | C | D | E | F | |
|---|---|---|---|---|---|---|
| 30-DUAL | 266″ | 102″ | 102″ | 188″ | 46″ | 70″ |
| 34-DUAL | 282″ | 102″ | 102″ | 204″ | 46″ | 70″ |
| 38-DUAL | 306″ | 102″ | 102″ | 228″ | 46″ | 70″ |
Optional Equipment
- Advance-warning light
- Fluid-filled pressure gauge
- Oil heater
- Odour control system
- Open hopper (for top or loading dock)
- Fully enclosed hopper with door
- Through the wall installation kits
- Walk-on or drive-on decks
- Safety gate
- Hydraulic cart-dump systems
Electrical system upgrades
- System monitor: SCADA panel (add-on panel or integrated upgrade) provides cell-based monitoring of all systems including container fullness, safety circuit devices, container positioning, hydraulic system devices including reservoir fullness, oil temperature and system in-use time
- Remote start/stop station
- Auto-start system (photo-eye or sonic sensor)
- Wireless remote control
- Biometric interface
- HMI based operator interface for tie into building monitoring systems
Hydraulic system upgrades
- Single phase and three phase power units
- Hi-lo hydraulic pumps for reduced cycle time applications
- Regen circuit for improved hydraulic fluid circulation
- Over-sized oil reservoirs to accommodate ancillary devices and improved heat sink
- Oil cooler for high duty cycle applications
- Bio-degradable oil
- In tank oil heater
- Sonic sensors for oil fullness monitoring
- Low temperature oil (as low as -60 Celsius is available)
Compactor upgrades
- Custom chute systems
- Custom weather enclosures
- Drive-on deck systems (certified up to 20,000 lbs.)
- Tongue and grooved floor designs
- AR plate floors and sides for reduced press head/compactor shell wear
- Pad-less set-up for installation on asphalt
- Custom hydraulic cart tipping systems
- Light curtain-based safety sensors
- Custom steel safety barriers
- Custom hydraulic lift systems
