Description

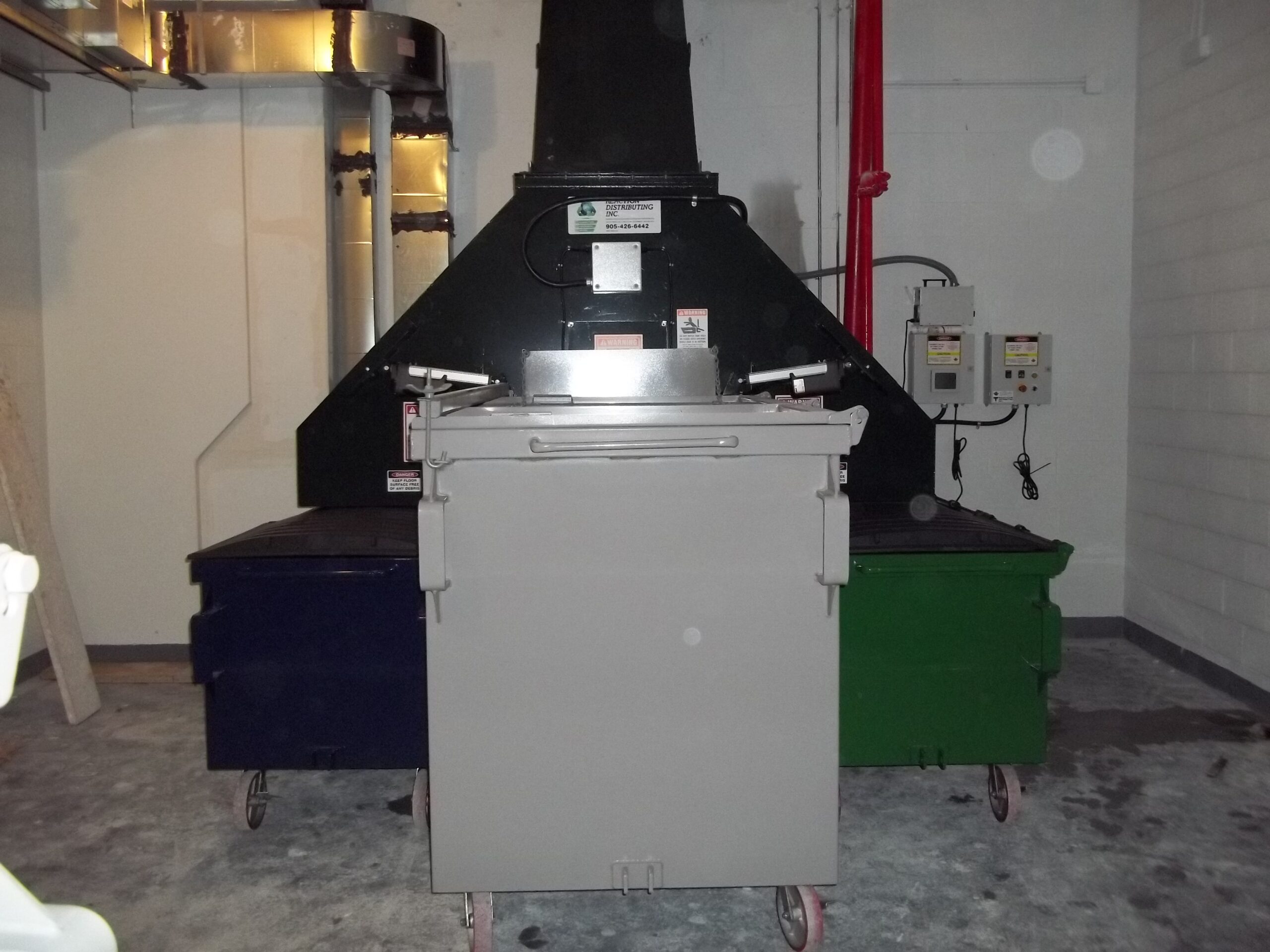

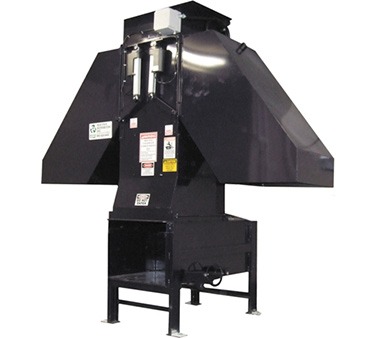

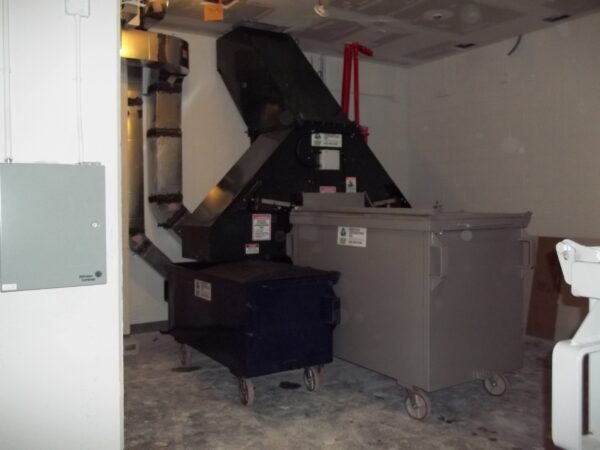

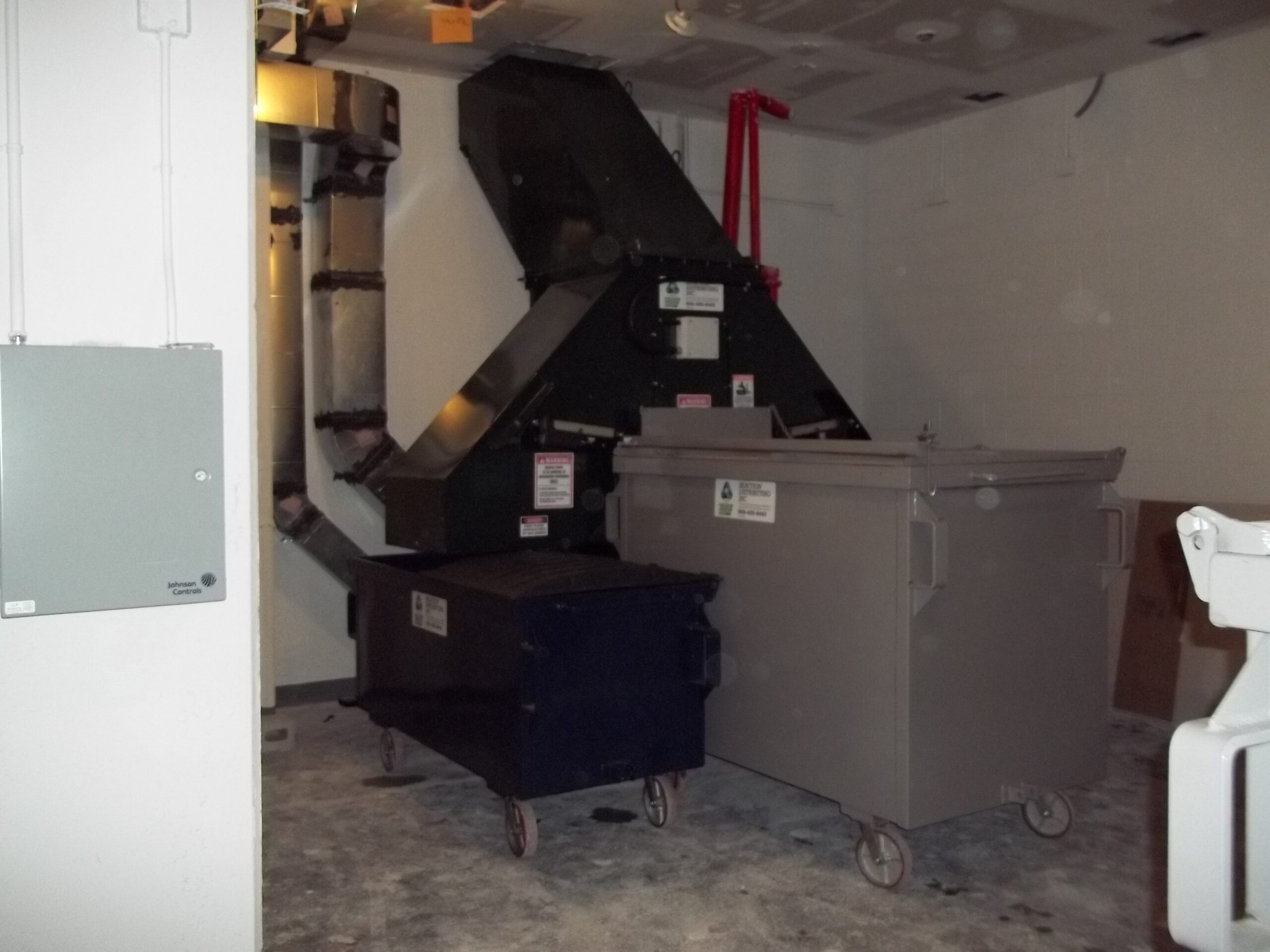

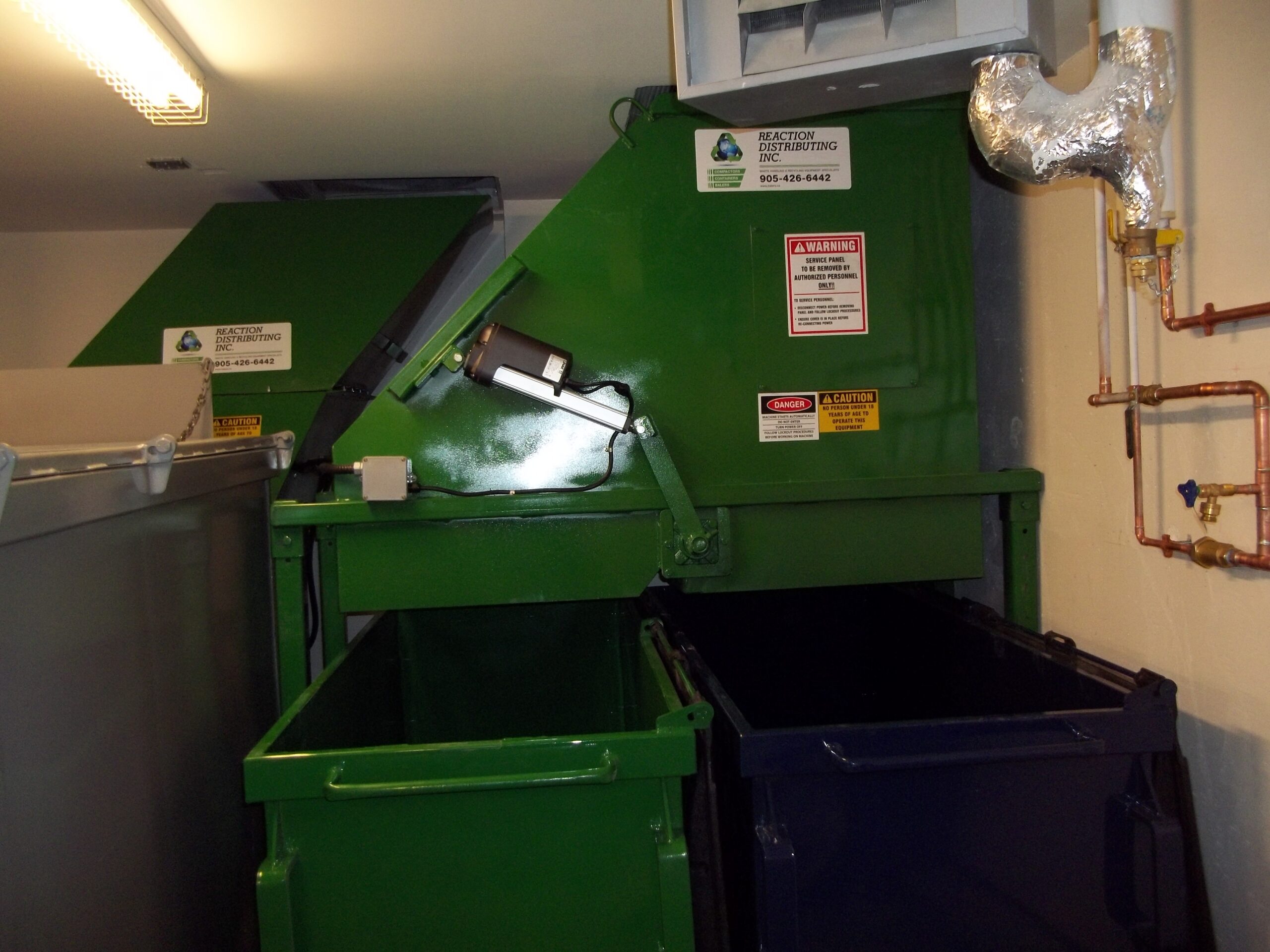

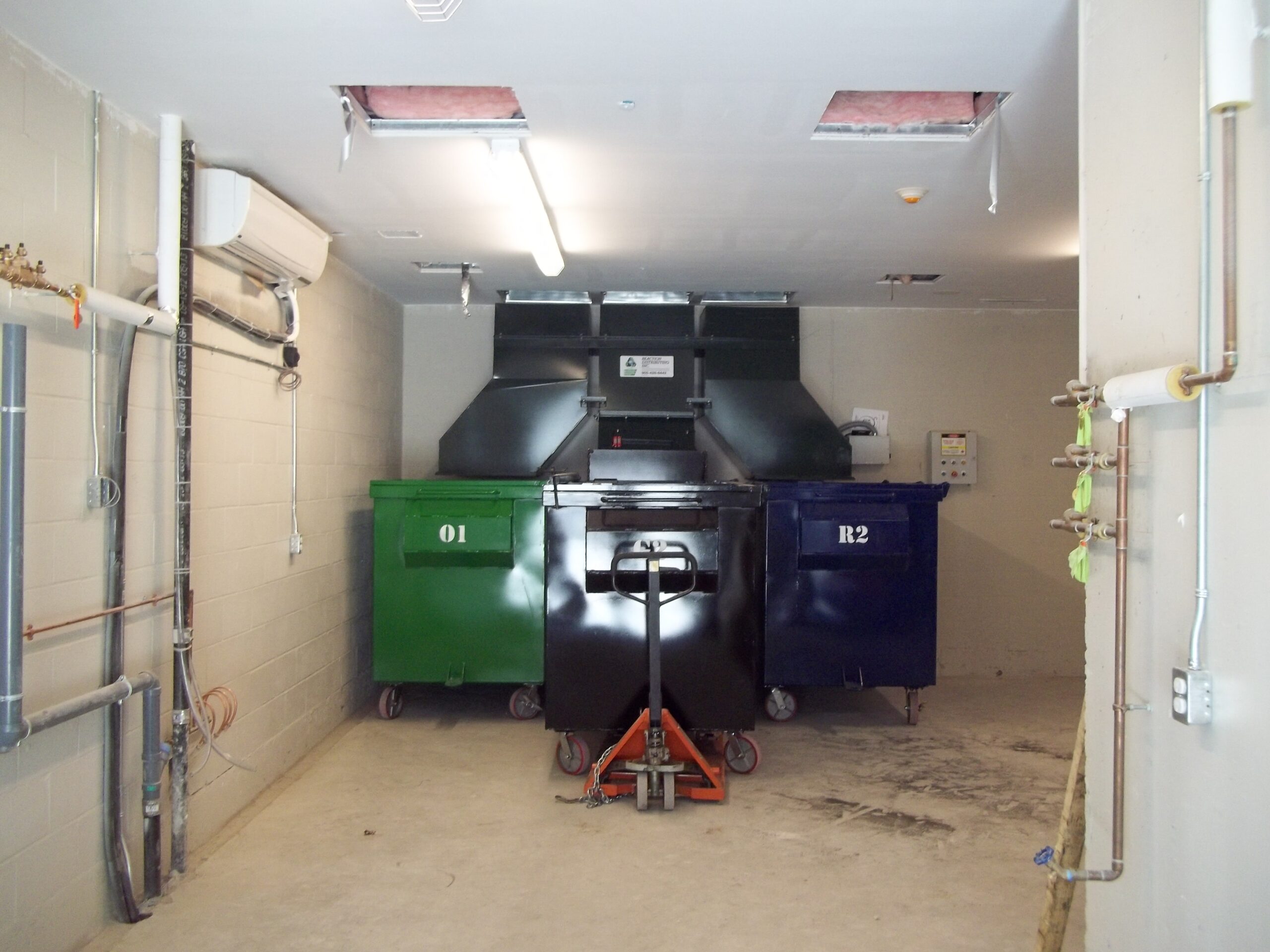

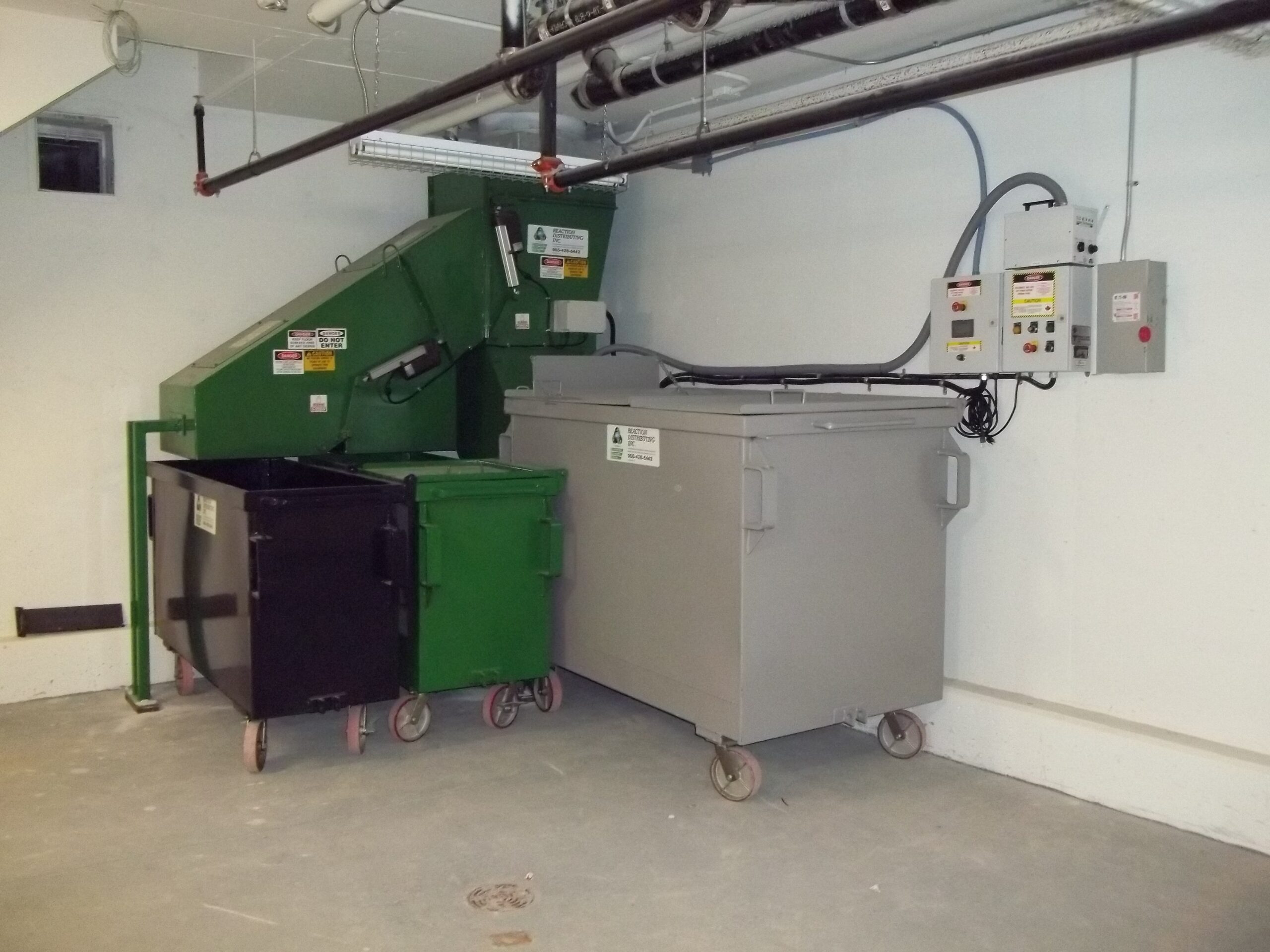

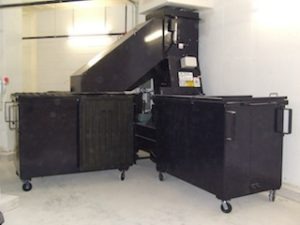

The HAS-2 and HAS-3 sorter heads are designed to allow waste that is deposited into a trash chute in a multi-unit residential building to be sorted into as many as three different components. Typically those components are: trash, recyclables and organics; however. The client can choose to vary the stream components should local bylaws require it. The sorter can be used as a stand alone unit or with a T-20X stationary compactor should the client choose to compact the trash portion of the waste stream. Individual floor operators are supplied with each sorter (one per residential floor) allowing the tenant to select the appropriate equipment configuration based on the type of waste being deposited. Each system is custom designed to fit the client’s building.
Technical Details
Standard Features
- UL/CSA Approved Design
- Meets/exceeds ANSI Z245.2 regulations
- Meets/exceeds OSHA regulations
- PLC “flex-design” based control systems
- NEMA 4 rated enclosure
- Internal timers prevent system run-on
- Self-diagnostic indicators
- 24-volt controls
- Adjustable multi-cycle timer
- 75% and 100% full light
- Auto-alert maintenance mode
- Heavy duty oil-tight pushbutton controls
- Key lockable start pushbutton
Mechanical Specifications
| T-20X-HAS | |
|---|---|
| Charge Chamber Volume | 0.25 |
| Charge Chamber Opening Size | 27″ x 25″ |
| Ram Face Size | 27″ x 15″ |
| Ram Penetration | 5″ |
| Compaction Force Normal | 19,625 lbs |
| Compaction Force Maximum | 23,550 lbs |
| Cycle Time | 25 seconds |
| System Pressure Normal | 2000 psi |
| System Pressure Maximum | 2200 psi |
| Pump Capacity | 2 gpm |
| Motor Size | 1 hp |
| Cylinder Size | 2 x 2.5″ |
| Cylinder Type | Double Acting |
| Ram Face Pressure Normal | 48.5 psi |
| Ram Face Pressure Maximum | 58.1 psi |
| Oil Tank Capacity | 5 gal |
| Shipping Weight | 950 lbs |
Electrical Specifications
| Control System | 110 volt 60 cycle powered by step-down transformer |
| Control Panel | Fully wired. Keyed start button, emergency stop, full lights, reset button, PLC, current sensor |
| Power | 115 volt, single phase |
Dimensions
| A | B | C | D | E | |
|---|---|---|---|---|---|
| T-20X | 52″ | 34″ | 31″ | 25″ | 27″ |
Optional Equipment
- Advance-warning light
- Fluid-filled pressure gauge
- Oil heater
- Odour control system
- Open hopper (for top or dock loading)
- Remote trouble/fill light
- Sorter system
Compactor Upgrades
- Custom chute systems
- Custom weather enclosures
- Drive-on deck systems (certified up to 20,000 lbs.)
- Tongue and grooved floor designs
- AR plate floors and sides for reduced press head/compactor shell wear
- Pad-less set-up for installation on asphalt
- Custom hydraulic cart tipping systems
- Light curtain-based safety sensors
- Custom steel safety barriers
- Custom hydraulic lift systems
Electrical system upgrades
- System monitor: SCADA panel (add-on panel or integrated upgrade) provides cell-based monitoring of all systems including container fullness, safety circuit devices, container positioning, hydraulic system devices including reservoir fullness, oil temperature and system in-use time
- Remote start/stop station
- Auto-start system (photo-eye or sonic sensor)
- Wireless remote control
- Biometric interface
- HMI based operator interface for tie into building monitoring systems
Hydraulic system upgrades
- Single phase and three phase power units
- Hi-lo hydraulic pumps for reduced cycle time applications
- Regen circuit for improved hydraulic fluid circulation
- Over-sized oil reservoirs to accommodate ancillary devices and improved heat sink
- Oil cooler for high duty cycle applications
- Bio-degradable oil
- In tank oil heater
- Sonic sensors for oil fullness monitoring
- Low temperature oil (as low as -60 Celsius is available)
Compactor upgrades
- Custom chute systems
- Custom weather enclosures
- Drive-on deck systems (certified up to 20,000 lbs.)
- Tongue and grooved floor designs
- AR plate floors and sides for reduced press head/compactor shell wear
- Pad-less set-up for installation on asphalt
- Custom hydraulic cart tipping systems
- Light curtain-based safety sensors
- Custom steel safety barriers
- Custom hydraulic lift systems
