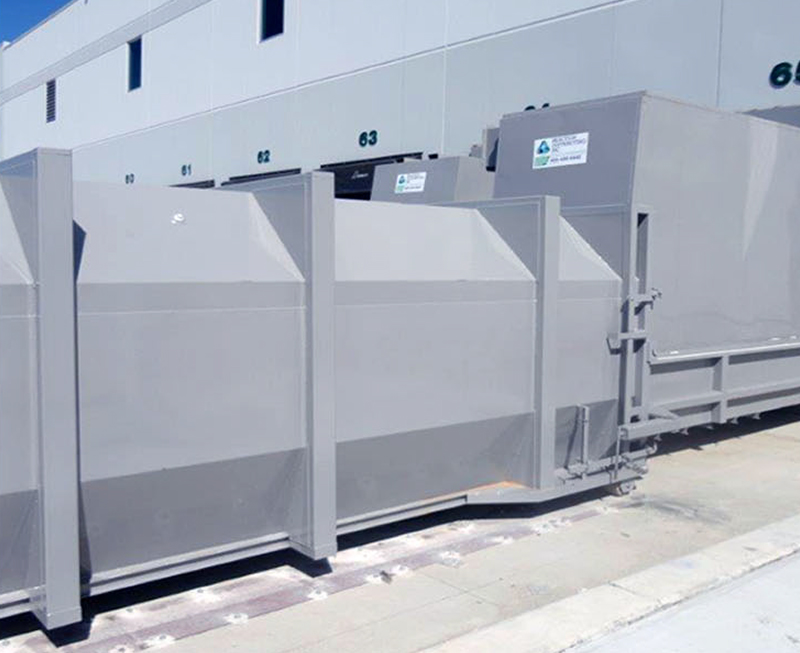

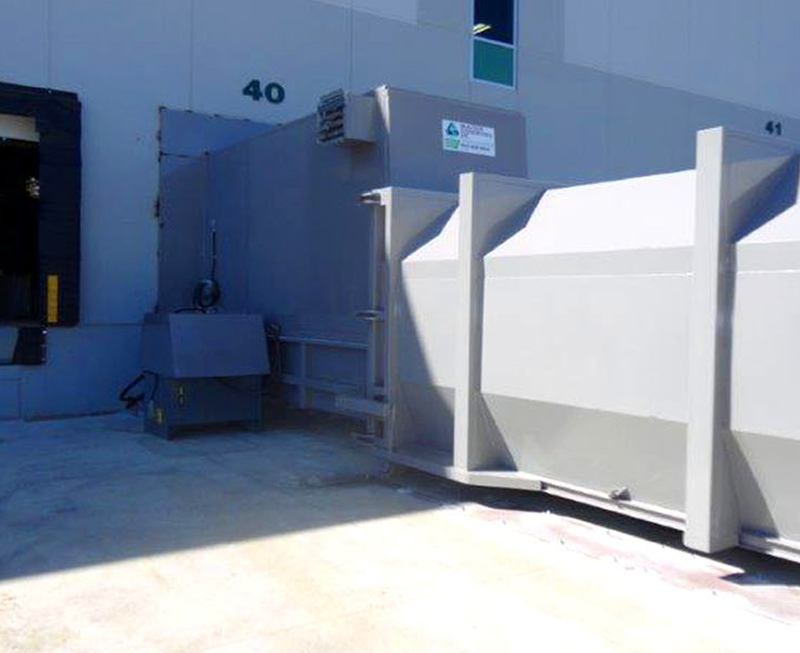

Description
The T-400 series is designed for dry waste applications and is available as a standard duty, heavy duty and extra-heavy duty unit depending on the application. Generally the T-400 standard duty is ideal for the retail environment, the T-400HD for the commercial sector and the T-400XHD for the industrial and municipal sectors. Each system can be customized to suite the client’s needs and can be supplied as part of a 100% turnkey system. Where space is limited, theT-400X model delivers the same benefits as the T-400 unit; but with with an overall smaller footprint.
Technical Details
Standard Features
- UL/CSA Approved Design
- Meets/exceeds ANSI Z245.2 regulations
- Meets/exceeds OSHA regulations
- PLC “flex-design” based control systems
- NEMA 4 rated enclosure
- Internal timers prevent system run-on
- Self-diagnostic indicators
- 24-volt controls
- Adjustable multi-cycle timer
- 75% and 100% full light
- Auto-alert maintenance mode
- Heavy duty oil-tight pushbutton controls
- Key lockable start pushbutton
Mechanical Specifications
| T400 | T400HD | T400XHD | T400X | |
|---|---|---|---|---|
| Charge Chamber Volume | 3.5 | 3.5 | 3.5 | 3.5 |
| Charge Chamber Opening Size | 68″ x 60″ | 68″ x 60″ | 68″ x 60″ | 68″ x 60″ |
| Ram Face Size | 27″ x 60″ | 27″ x 60″ | 27″ x 60″ | 27″ x 60″ |
| Ram Penetration | 13″ | 13″ | 13″ | 13″ |
| Compaction Force Normal | 56,500 lbs | 76,930 lbs | 113,000 lbs | 63,585 lbs |
| Compaction Force Maximum | 62,172 lbs | 88,470 lbs | 124,344 lbs | 69,945 lbs |
| Cycle Time | 63 seconds | 73 seconds | 63 seconds | 63 seconds |
| System Pressure Normal | 2000 psi | 2000 psi | 2000 psi | 2000 psi |
| System Pressure Maximum | 2200 psi | 2200 psi | 2200 psi | 2200 psi |
| Pump Capacity | 20 gpm | 25 gpm | 30 gpm | 20 gpm |
| Motor Size | 15 hp | 20 hp | 25 hp | 15 hp |
| Cylinder Size | 1 x 6″0 | 1 x 7″0 | 2 x 6″0 | 2 x 4″0 |
| Cylinder Type | Double Acting | Double Acting | Double Acting | Double Acting |
| Ram Face Pressure Normal | 34.2 psi | 47.5 psi | 69.8 psi | 38.5 psi |
| Ram Face Pressure Maximum | 39.4 psi | 52.3 psi | 76.8 psi | 42.4 psi |
| Oil Tank Capacity | 30 gal | 40 gal | 75 gal | 30 gal |
| Shipping Weight | 9,950 lbs | 11,000 lbs | 13,500 lbs | 9,950 lbs |
Electrical Specifications
| Control System | 110 volt 60 cycle powered by step-down transformer |
| Control Panel | Fully wired. Keyed start button, emergency stop, full lights, reset button, PLC, current sensor |
| Power | 208/230/575 volt, 3 phase 60 cycle |
Dimensions
| A | B | C | D | E | |
|---|---|---|---|---|---|
| T400 | 180″ | 45″ | 68″ | 68″ | 60″ |
| T400HD | 180″ | 45″ | 68″ | 68″ | 60″ |
| T400XHD | 180″ | 45″ | 68″ | 68″ | 60″ |
| T400X | 154″ | 48″ | 68″ | 68″ | 60″ |
Electrical system upgrades
- System monitor: SCADA panel (add-on panel or integrated upgrade) provides cell-based monitoring of all systems including container fullness, safety circuit devices, container positioning, hydraulic system devices including reservoir fullness, oil temperature and system in-use time
- Remote start/stop station
- Auto-start system (photo-eye or sonic sensor)
- Wireless remote control
- Biometric interface
- HMI based operator interface for tie into building monitoring systems
Hydraulic system upgrades
- Single phase and three phase power units
- Hi-lo hydraulic pumps for reduced cycle time applications
- Regen circuit for improved hydraulic fluid circulation
- Over-sized oil reservoirs to accommodate ancillary devices and improved heat sink
- Oil cooler for high duty cycle applications
- Bio-degradable oil
- In tank oil heater
- Sonic sensors for oil fullness monitoring
- Low temperature oil (as low as -60 Celsius is available)
Compactor upgrades

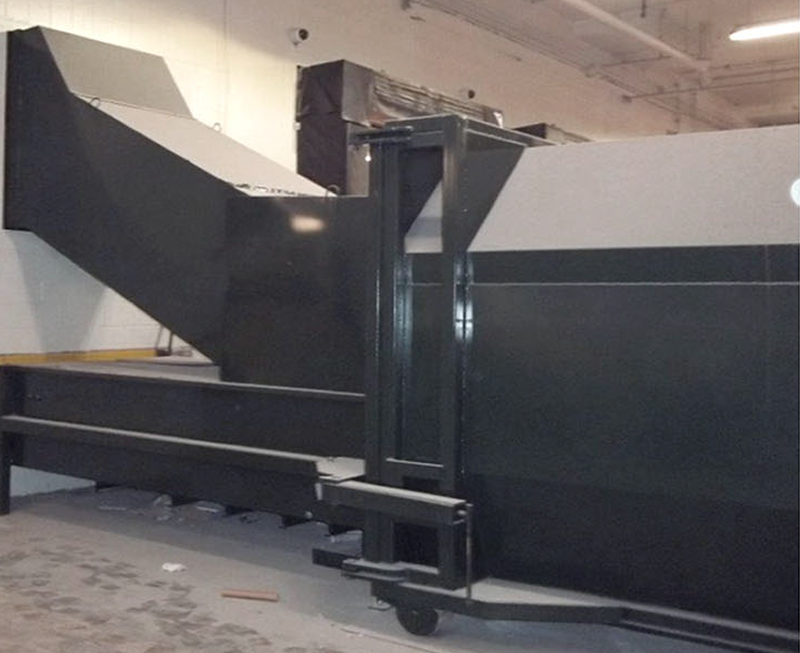

- Custom chute systems
- Custom weather enclosures
- Drive-on deck systems (certified up to 20,000 lbs.)
- Tongue and grooved floor designs
- AR plate floors and sides for reduced press head/compactor shell wear
- Pad-less set-up for installation on asphalt
- Custom hydraulic cart tipping systems
- Light curtain-based safety sensors

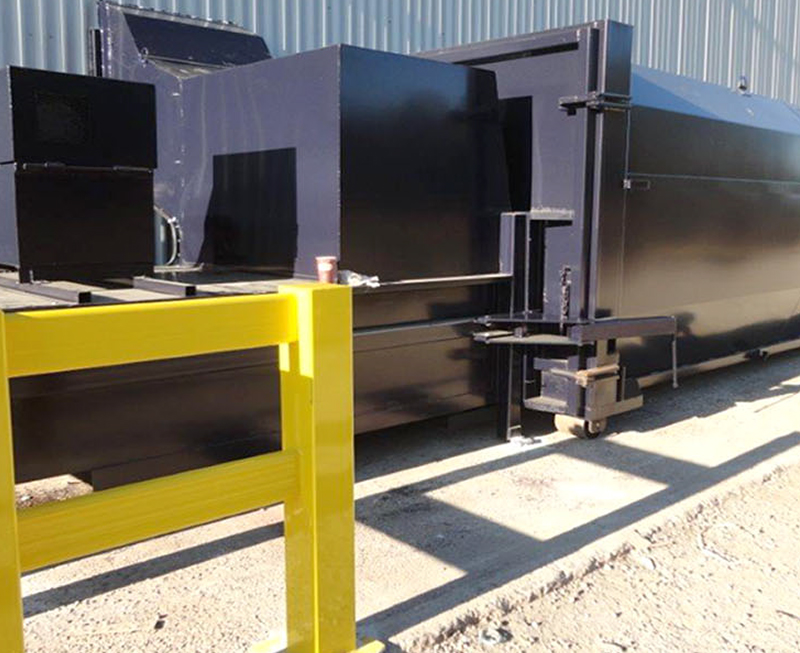

- Custom steel safety barriers
- Custom hydraulic lift systems
