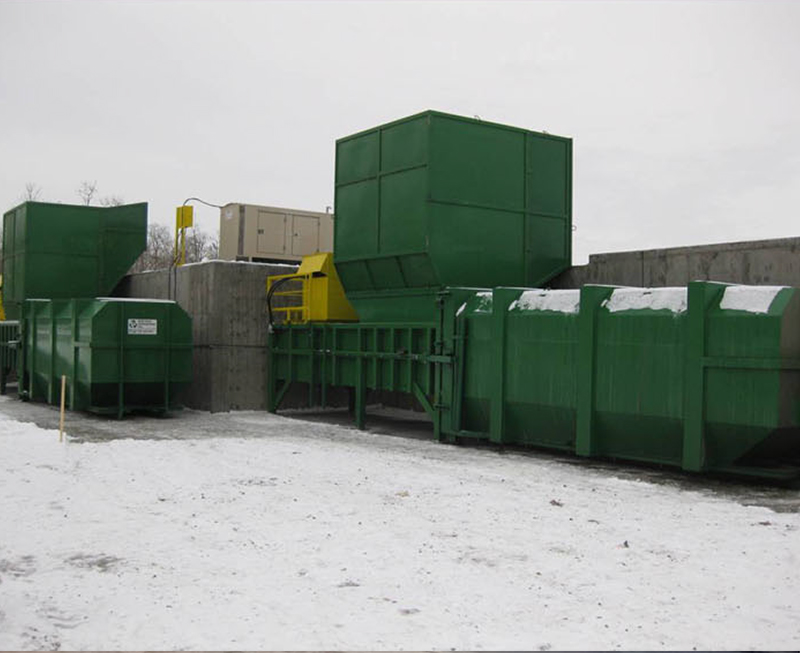

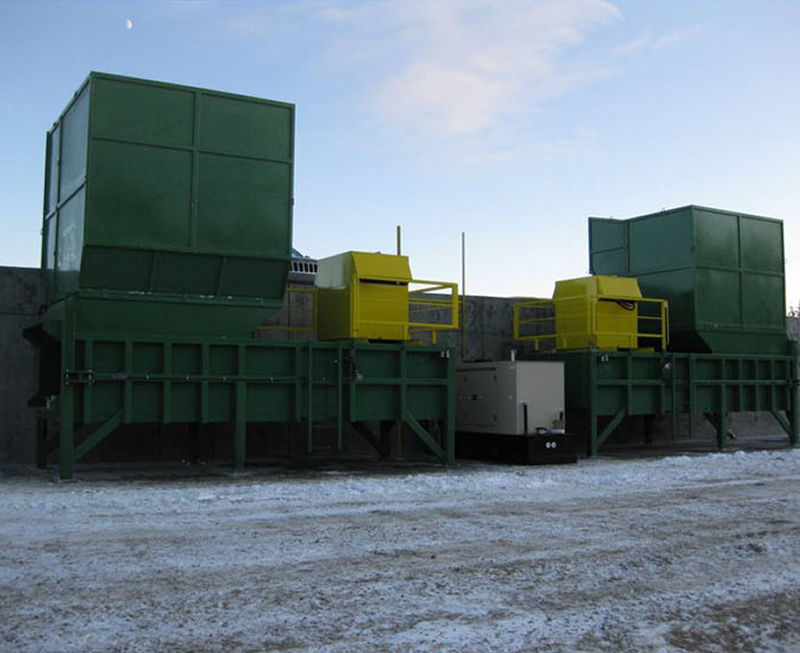

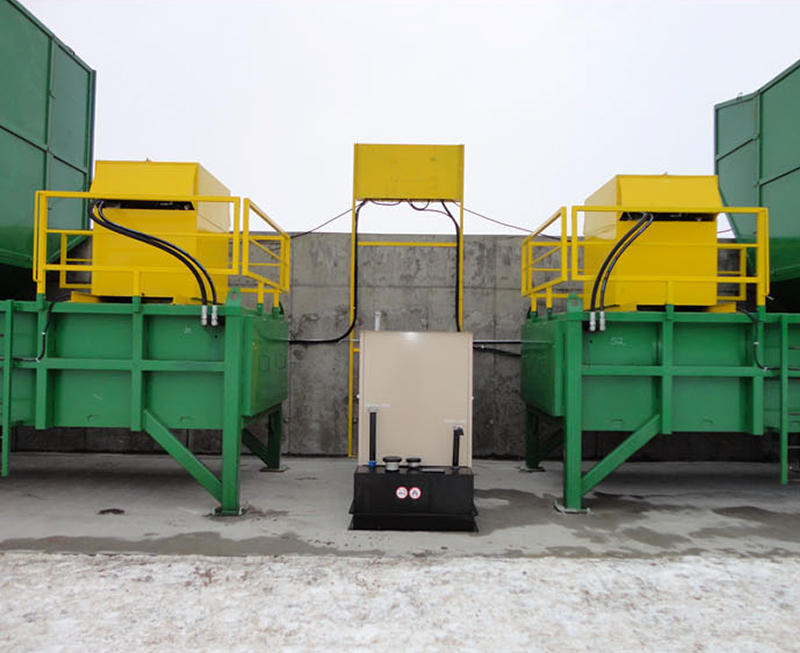

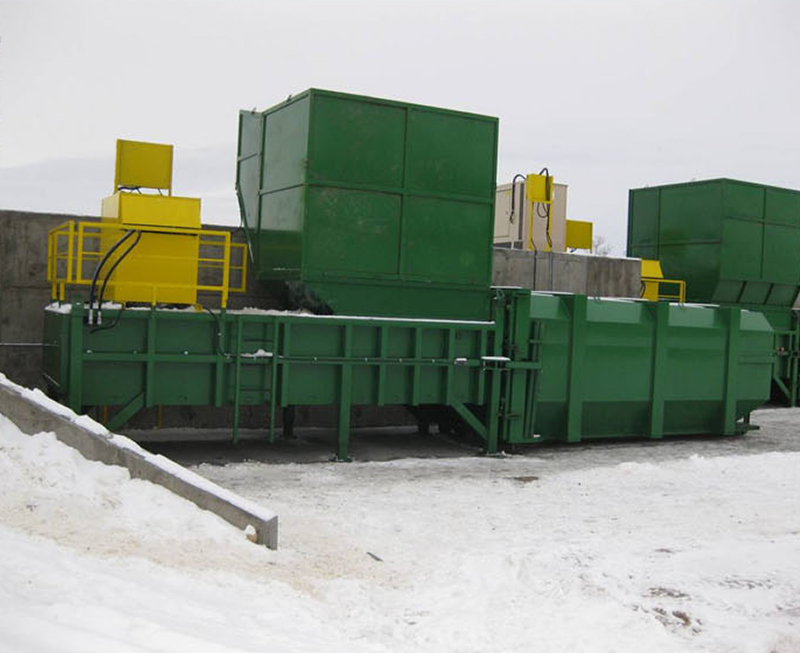

T-550 Series Transfer Station Compactors

Category:

Description

The T-550 series is designed for dry waste applications and is available as a standard duty, heavy duty and extra-heavy duty unit depending on the application. Generally the T-550 standard duty is ideal for the retail environment, the T-550HD for the commercial sector and the T-550XHD for the industrial and municipal sectors. Each system can be customized to suite the client’s needs and can be supplied as part of a 100% turnkey system. Where space is limited, the T-550X model delivers the same benefits as the T-550 unit; but with with an overall smaller footprint.

Learn MoreBook a consultation

Technical Details

Standard Features

  • UL/CSA Approved Design
  • Meets/exceeds ANSI Z245.2 regulations
  • Meets/exceeds OSHA regulations
  • PLC “flex-design” based control systems
  • NEMA 4 rated enclosure
  • Internal timers prevent system run-on
  • Self-diagnostic indicators
  • 24-volt controls
  • Adjustable multi-cycle timer
  • 75% and 100% full light
  • Auto-alert maintenance mode
  • Heavy duty oil-tight pushbutton controls
  • Key lockable start pushbutton

Mechanical Specifications

T550 T550HD T550XHD T550X
Charge Chamber Volume 5.5 5.5 5.5 5.5
Charge Chamber Opening Size 96″ x 60″ 96″ x 60″ 96″ x 60″ 96″ x 60″
Ram Face Size 36″ x 60″ 36″ x 60″ 36″ x 60″ 36″ x 60″
Ram Penetration 24″ 24″ 24″ 24″
Compaction Force Normal 56,500 lbs 76,930 lbs 113,000 lbs 78,500 lbs
Compaction Force Maximum 62,172 lbs 88,470 lbs 124,344 lbs 94,700 lbs
Cycle Time 63 seconds 73 seconds 63 seconds 73 seconds
System Pressure Normal 2000 psi 2000 psi 2000 psi 2000 psi
System Pressure Maximum 2200 psi 2200 psi 2200 psi 2200 psi
Pump Capacity 18 gpm 20 gpm 25 gpm 20 gpm
Motor Size 15 hp 20 hp 25 hp 20 hp
Cylinder Size 1 x 6″ dia. 1 x 7″ dia. 2 x 6″ dia. 2 x 5″ dia.
Cylinder Type Double Acting Double Acting Double Acting Double Acting
Ram Face Pressure Normal 26.6 psi 35.6 psi 52.3 psi 36.1 psi
Ram Face Pressure Maximum 28.8 psi 39.2 psi 57.5 psi 40.0 psi
Oil Tank Capacity 100 gal 180 gal 220 gal 185 gal
Shipping Weight 12,850 lbs 14,120 lbs 15,960 lbs 14,850 lbs

Electrical Specifications

Control System 110 volt 60 cycle powered by step-down transformer
Control Panel Fully wired. Keyed start button, emergency stop, full lights, reset button, PLC, current sensor
Power 208/230/575 Volt, 3 Phase 60 Cycle

Dimensions

Table Diagram

A B C D E
T550 243″ 48″ 72″ 108″ 60″
T550HD 243″ 48″ 72″ 108″ 60″
T550XHD 243″ 48″ 72″ 108″ 60″
T550X 219″ 48″ 72″ 108″ 60″

Electrical system upgrades

  • System monitor: SCADA panel (add-on panel or integrated upgrade) provides cell-based monitoring of all systems including container fullness, safety circuit devices, container positioning, hydraulic system devices including reservoir fullness, oil temperature and system in-use time
  • Remote start/stop station
  • Auto-start system (photo-eye or sonic sensor)
  • Wireless remote control
  • Biometric interface
  • HMI based operator interface for tie into building monitoring systems

Hydraulic system upgrades

  • Single phase and three phase power units
  • Hi-lo hydraulic pumps for reduced cycle time applications
  • Regen circuit for improved hydraulic fluid circulation
  • Over-sized oil reservoirs to accommodate ancillary devices and improved heat sink
  • Oil cooler for high duty cycle applications
  • Bio-degradable oil
  • In tank oil heater
  • Sonic sensors for oil fullness monitoring
  • Low temperature oil (as low as -60 Celsius is available)

Compactor upgrades

undefined

  • Custom chute systems
  • Custom weather enclosures
  • Drive-on deck systems (certified up to 20,000 lbs.)
  • Tongue and grooved floor designs
  • AR plate floors and sides for reduced press head/compactor shell wear
  • Pad-less set-up for installation on asphalt
  • Custom hydraulic cart tipping systems
  • Light curtain-based safety sensors
  • Custom steel safety barriers
  • Custom hydraulic lift systems
