Description

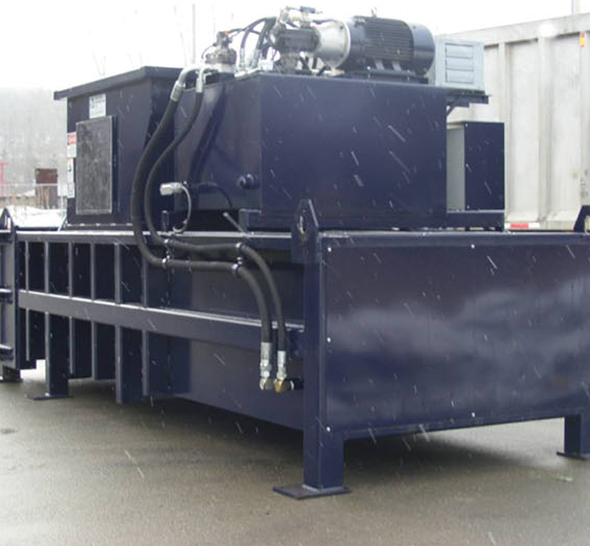

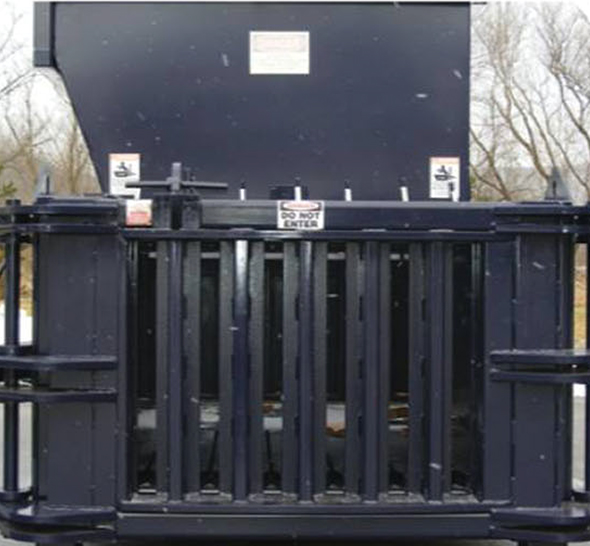

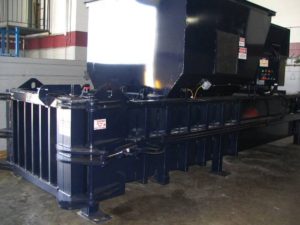

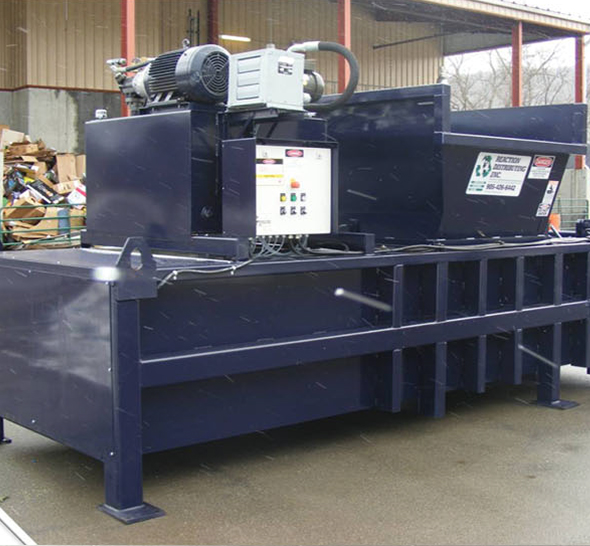

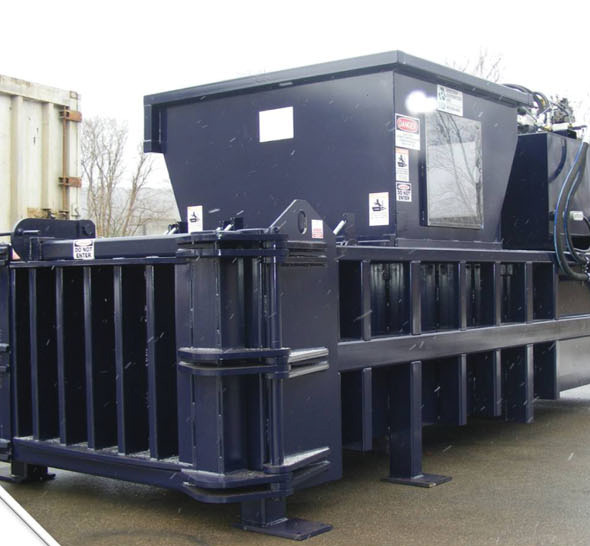

The THB baler series includes two distinct models (THB-6048 and THB-6060) both of which are available in three upgrades or trim levels. Both models are full penetration units; which means that they can process a wide range of materials (plastic film and bottles, fine paper, aluminum cans and cardboard) without any need for the material to be preconditioned via a fluffer or shredder. The oversized clear top openings (60″ x 48″ and 60″ x 60″) enables the units to easily process large items and/or large volumes of materials with each stroke of the press head. Upgrades such as tongue and groove floors, AR-400 wear plates and conveyors can be added as required to provide our clients with a fully functioning and all encompassing baling system.
Technical Details
Standard Features
- UL/CSA Approved Design
- Meets/exceeds ANSI Z245.2 regulations
- Meets/exceeds OSHA regulations
- PLC “flex-design” based control systems
- NEMA 4 rated enclosure
- Internal timers prevent system run-on
- Self-diagnostic indicators
- 24-volt controls
- Adjustable multi-cycle timer
- 75% and 100% full light
- Auto-alert maintenance mode
- Heavy duty oil-tight pushbutton controls
- Key lockable start pushbutton
Mechanical Specifications
| THB-6048 | THB-6048HD | THB-6048XHD | |
|---|---|---|---|
| Charge Chamber Opening Size | 60″ x 48″ | 60″ x 48″ | 60″ x 48″ |
| Bale Size | 60″ x 48″ x 30″ | 60″ x 48″ x 30″ | 60″ x 48″ x 30″ |
| Bale Weight | 1200 to 1300 lbs | 1300 to 1400 lbs | 1400 to 1500 lbs |
| Ram Penetration | 45″ | 45″ | 45″ |
| Baling Force Normal | 76,930 lbs | 113,000 lbs | 153,860 lbs |
| Baling Force Maximum | 92,316 lbs | 135,600 lbs | 184,632 lbs |
| Cycle Time | 55 sec. (no load) | 65 sec. (no load) | 65 sec. (no load) |
| System Pressure Normal | 2000 psi | 2000 psi | 2000 psi |
| System Pressure Maximum | 2400 psi | 2400 psi | 2400 psi |
| Pump Capacity | 38 gpm (Hi-Lo) | 48 gpm (Hi-Lo) | 58 gpm (Hi-Lo) |
| Motor Size | 20 hp | 30 hp | 40 hp |
| Cylinder Type | 1″ x 7″ | 2″ x 6″ | 2″ x 7″ |
| Ram Face Pressure Normal | 42.7 psi | 62.8 psi | 85.5 psi |
| Ram Face Pressure Maximum | 51.3 psi | 75.4 psi | 102.6 psi |
| Oil Tank Capacity | 125 gal | 175 gal | 225 gal |
| Shipping Weight | 14,500 lbs | 15,500 lbs | 18,500 lbs |
Electrical Specifications
| Control System | 110 volt 60 cycle powered by step-down transformer |
| Control Panel | Fully wired. Keyed start button, emergency stop, full lights, reset button |
| Power | 208/230/575 Volt, 3 phase 60 cycle |
Dimensions
| A | B | C | D | E | |
|---|---|---|---|---|---|
| THB-6048 | 218″ | 48″ | 72″ | 48″ | 60″ |
| THB-6048HD | 218″ | 48″ | 72″ | 48″ | 60″ |
| THB-6048XHD | 218″ | 48″ | 72″ | 48″ | 60″ |
Optional Equipment
- Deep chamber (60″)
- Full bale light
- Hydraulic bale dump
- R.H. hinged bale door
Electrical system upgrades
- System monitor: SCADA panel (add-on panel or integrated upgrade) provides cell-based monitoring of all systems including container fullness, safety circuit devices, container positioning, hydraulic system devices including reservoir fullness, oil temperature and system in-use time
- Remote start/stop station
- Auto-start system (photo-eye or sonic sensor)
- Wireless remote control
- Biometric interface
- HMI based operator interface for tie into building monitoring systems
Hydraulic system upgrades
- Single phase and three phase power units
- Hi-lo hydraulic pumps for reduced cycle time applications
- Regen circuit for improved hydraulic fluid circulation
- Over-sized oil reservoirs to accommodate ancillary devices and improved heat sink
- Oil cooler for high duty cycle applications
- Bio-degradable oil
- In tank oil heater
- Sonic sensors for oil fullness monitoring
- Low temperature oil (as low as -60 Celsius is available)
Compactor upgrades
- Custom chute systems
- Custom weather enclosures
- Drive-on deck systems (certified up to 20,000 lbs.)
- Tongue and grooved floor designs
- AR plate floors and sides for reduced press head/compactor shell wear
- Pad-less set-up for installation on asphalt
- Custom hydraulic cart tipping systems
- Light curtain-based safety sensors
- Custom steel safety barriers
- Custom hydraulic lift systems
