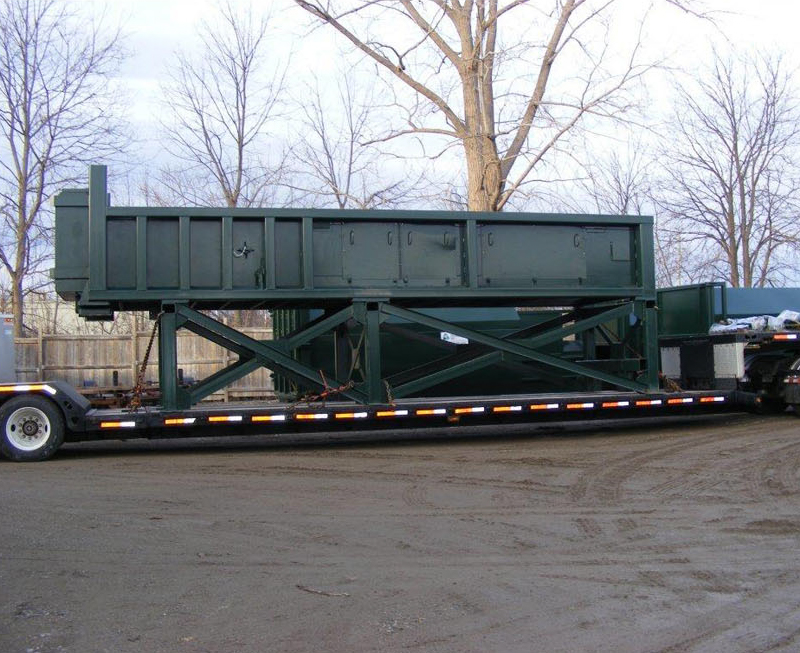

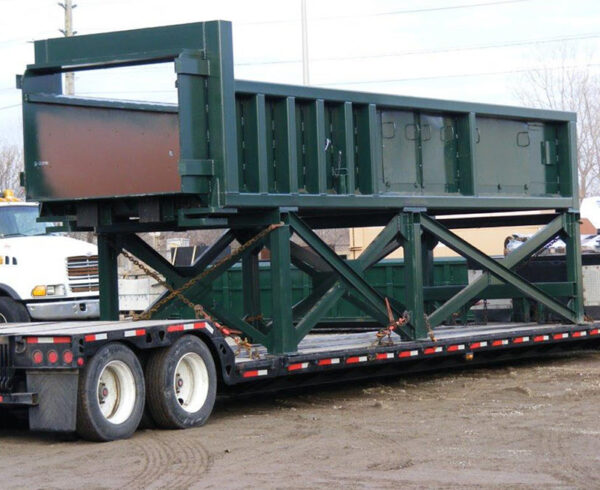

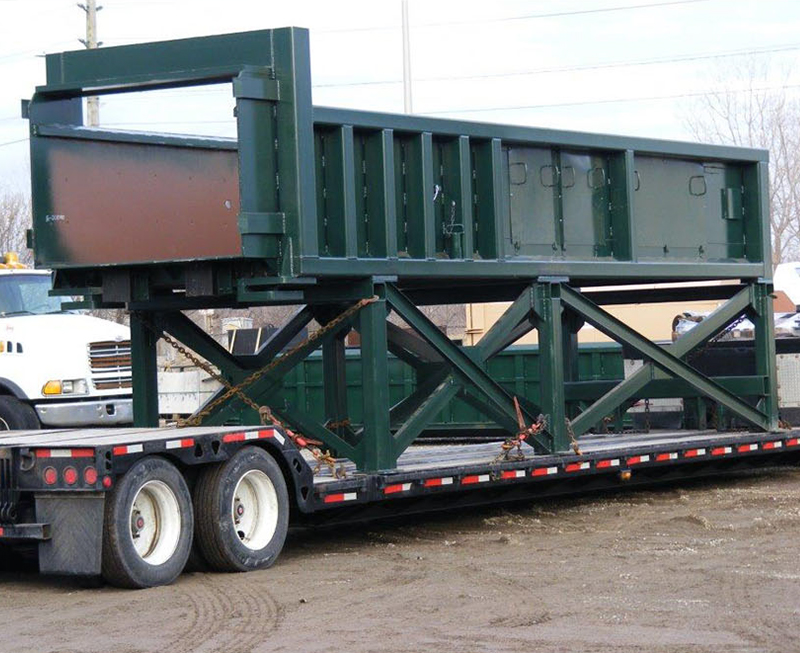

TP Series Transfer Station Compactors

Category:

Description

The TP series is designed for dry waste applications and is available as a standard duty, heavy duty and extra-heavy duty unit depending on the application. Generally the TP standard duty is ideal for the retail environment, the TPHD for the commercial sector and the TPXHD for the industrial and municipal sectors. Each system can be customized to suite the client’s needs and can be supplied as part of a 100% turnkey system. Where space is limited, the TPX model delivers the same benefits as the TP unit; but with with an overall smaller footprint.

Learn MoreBook a consultation

Technical Details

Standard Features

  • UL/CSA Approved Design
  • Meets/exceeds ANSI Z245.2 regulations
  • Meets/exceeds OSHA regulations
  • PLC “flex-design” based control systems
  • NEMA 4 rated enclosure
  • Internal timers prevent system run-on
  • Self-diagnostic indicators
  • 24-volt controls
  • Adjustable multi-cycle timer
  • 75% and 100% full light
  • Auto-alert maintenance mode
  • Heavy duty oil-tight pushbutton controls
  • Key lockable start pushbutton

Mechanical Specifications

TP 99 TP 99XHD TP 220 TP 220XHD
Charge Chamber Volume 5.66 5.66 10.62 10.62
Charge Chamber Opening Size 104″ x 78″ 104″ x 78″ 127″ x 78″ 127″ x 78″
Ram Face Size 80″ x 36″ 80″ x 36″ 80″ x 36″ 80″ x 36″
Ram Penetration 30″ 30″ 30″ 30″
Compaction Force Normal 113,000 lbs 153,860 lbs 113,000 lbs 153,860 lbs
Compaction Force Maximum 135,000 lbs 184,632 lbs 135,000 lbs 184,632 lbs
Cycle Time 40 seconds 40 seconds 40 seconds 40 seconds
System Pressure Normal 2000 psi 2000 psi 2000 psi 2000 psi
System Pressure Maximum 2400 psi 2400 psi 2400 psi 2400 psi
Pump Capacity HI-LO 100 gpm HI-LO 100 gpm HI-LO 100 gpm HI-LO 100 gpm
Motor Size 50 hp 50 hp 50 hp 50 hp
Cylinder Size 2 x 6″ 2 x 7″ 2 x 6″ 2 x 7″
Cylinder Type Double Acting Double Acting Double Acting Double Acting
Ram Face Pressure Normal 47.1 psi 53.4 psi 47.1 psi 53.4 psi
Ram Face Pressure Maximum 56.5 psi 64.1 psi 56.5 psi 64.1 psi
Oil Tank Capacity 300 gal 300 gal 300 gal 300 gal
Shipping Weight 25,400 lbs 28,950 lbs 28,320 lbs 31,250 lbs

Electrical Specifications

Control System 110 volt 60 cycle powered by step-down transformer
Control Panel Fully wired. Keyed start button, emergency stop, full lights, reset button, PLC, current sensor
Power 208/230/575 Volt, 3 Phase 60 Cycle

Dimensions

Table Diagram

A B C D E
TP 99 302″ 48″ 97″ 108″ 78″
TP 99XHD 302″ 48″ 97″ 108″ 78″
TP 220 340″ 54″ 97″ 127″ 78″
TP 220XHD 340″ 54″ 97″ 127″ 78″

Electrical system upgrades

  • System monitor: SCADA panel (add-on panel or integrated upgrade) provides cell-based monitoring of all systems including container fullness, safety circuit devices, container positioning, hydraulic system devices including reservoir fullness, oil temperature and system in-use time
  • Remote start/stop station
  • Auto-start system (photo-eye or sonic sensor)
  • Wireless remote control
  • Biometric interface
  • HMI based operator interface for tie into building monitoring systems

Hydraulic system upgrades

  • Single phase and three phase power units
  • Hi-lo hydraulic pumps for reduced cycle time applications
  • Regen circuit for improved hydraulic fluid circulation
  • Over-sized oil reservoirs to accommodate ancillary devices and improved heat sink
  • Oil cooler for high duty cycle applications
  • Bio-degradable oil
  • In tank oil heater
  • Sonic sensors for oil fullness monitoring
  • Low temperature oil (as low as -60 Celsius is available)

Compactor upgrades

undefined

  • Custom chute systems
  • Custom weather enclosures
  • Drive-on deck systems (certified up to 20,000 lbs.)
  • Tongue and grooved floor designs
  • AR plate floors and sides for reduced press head/compactor shell wear
  • Pad-less set-up for installation on asphalt
  • Custom hydraulic cart tipping systems
  • Light curtain-based safety sensors
  • Custom steel safety barriers
  • Custom hydraulic lift systems
